MindFusion.Diagramming for ASP.NET MVC

Build diagrams or flowcharts in your ASP.NET MVC app.

Published by MindFusion Group
Distributed by ComponentSource since 2003

Prices from: $ 588.00 Version: 4.2 Updated: Sep 7, 2023

Screenshot of MindFusion.Diagramming for ASP.NET MVC

MindFusion.Diagramming for ASP.NET MVC

MindFusion.Diagramming for ASP.NET MVC offers a wide range of features for creating and customizing diagrams, flowcharts, trees, graphs and hierarchies. The control supports many options for adjusting the appearance of your diagram. Nodes can display both graphics and text and the font, size and color can be customized. It also includes more than 100 predefined shapes.

MindFusion.Diagramming for ASP.NET MVC

Sample Treee Map Diagram
Sample Treee Map Diagram
Sample Tree Layout Diagram
Sample Tree Layout Diagram
Sample Lanes Diagram
Sample Lanes Diagram
Sample Controls Flowchart
Sample Controls Flowchart
Click for more

Image 1 / 5

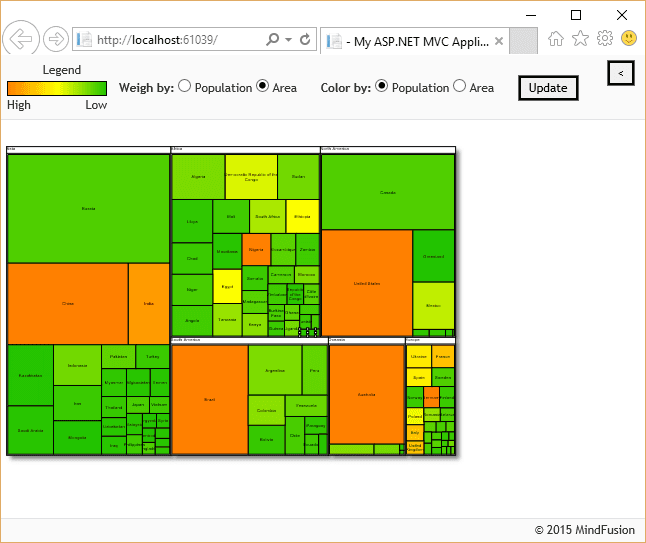

Sample Treee Map Diagram

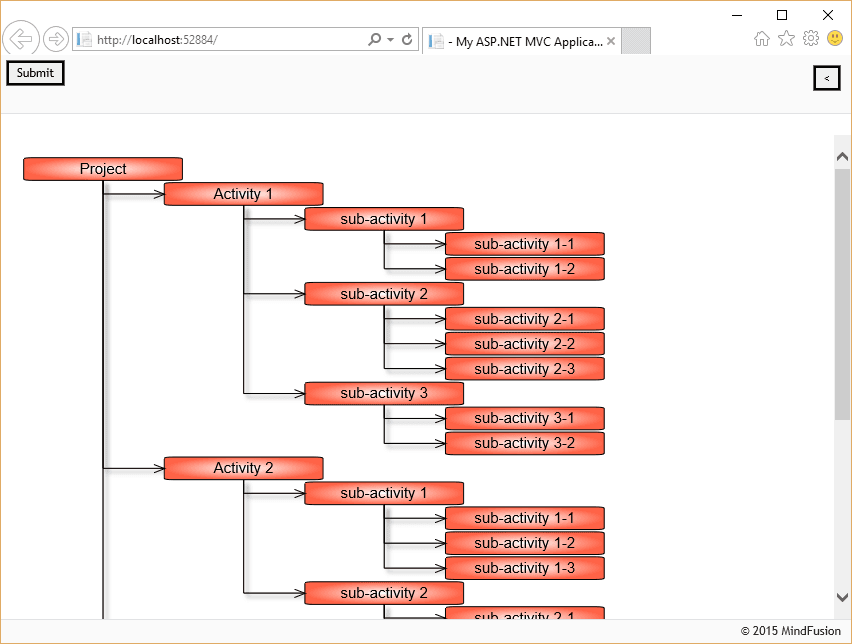

Sample Tree Layout Diagram
Sample Lanes Diagram

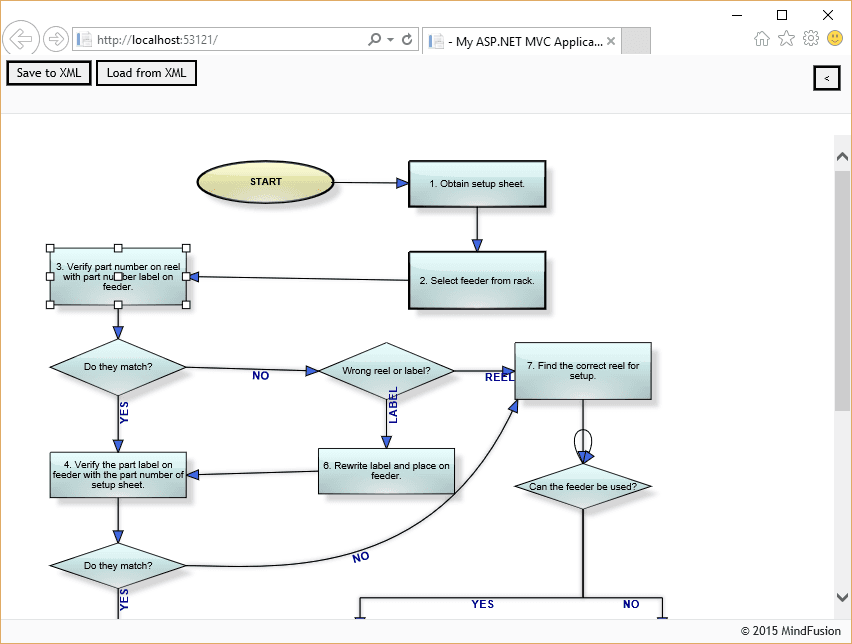

Sample Controls Flowchart

MindFusion.Diagramming for ASP.NET MVC Features

  • Server Side - The .NET library implements a flow-diagramming object model that lets you define structures such as trees, flowcharts and graphs.
  • Client Side - On the client side your diagram is rendered by a DiagramView JavaScript control that draws its content on an HTML Canvas.
  • Create New Items - Draw them with the mouse or drag and drop them from the NodeListView control.
  • Modify Existing Items - Nodes can be resized horizontally and vertically...
Learn more about MindFusion.Diagramming for ASP.NET MVC

Latest News

MindFusion.Diagramming for ASP.NET MVC 4.2
MindFusion.Diagramming for ASP.NET MVC 4.2
September 8, 2023New Version
Adds support for multiple diagram pages and tabbed diagram view.
