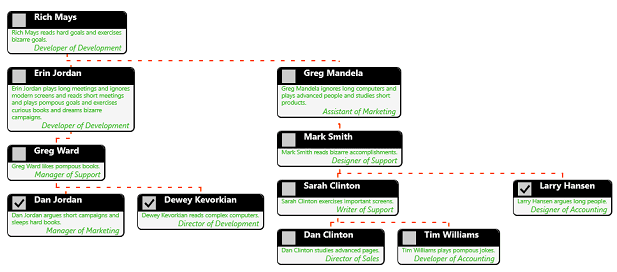

ComponentOne UWP OrgChart
Create customizable hierarchical charts with flexible layout options.
- Supports hierarchical data binding for dynamic org charts.
- Offers horizontal and vertical orientation with directional control.
- Customizable connector lines and node templates for advanced visuals.
Prices from:
| Available in | |
|---|---|
| ComponentOne WinUI and MAUI Edition | Loading |
| ComponentOne Studio Enterprise | Loading |
Hierarchical Data Binding
Bind the control to a single entity with sub-items or an enumerable collection to represent any hierarchical data structure seamlessly.
Flexible Layout Orientation
Set the chart's flow direction horizontally or vertically, including control over reading direction, to suit different visualization needs.
Collapsible Nodes
Allow users to expand or collapse individual nodes to manage visual complexity and focus on relevant parts of the organization.
Connector Customization
Adjust connector line properties such as brush, thickness, and dash pattern to differentiate relationships visually or match branding.
Spacing and Alignment Control
Fine-tune child item spacing and alignment properties to produce clear, readable chart layouts that fit your application design.
Conditional Data Templates
Use multiple data templates with advanced binding to visually distinguish between different node types based on their properties.
UWP Data Binding Integration
Supports standard UWP data binding mechanisms, allowing the OrgChart control to bind to hierarchical data sources such as collections of business objects for dynamic visualization.
ItemsControl-Based Architecture
Built on the UWP ItemsControl model, the OrgChart provides flexible templating and item customization capabilities, enabling developers to define how each node is displayed and styled.
Product Compatibility
Review the details below to ensure this product is supported within your environment.
Component Type
- Windows UWP Control
IDE Support
- Visual Studio
